(C,5,2) (D,2,1) (G,4,6) (E,6,5) (F,1,3) (H,3,4)

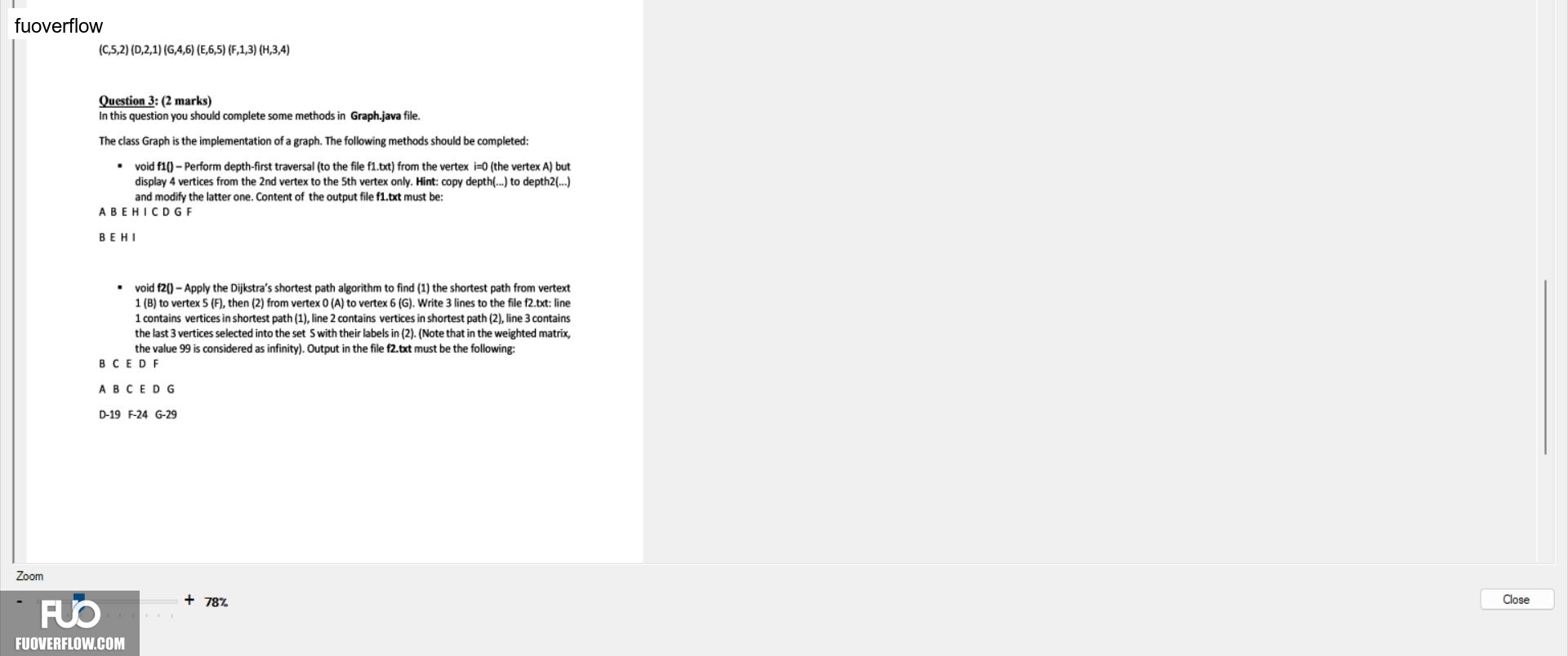

Question 3: (2 marks)
In this question you should complete some methods in Graph.java file.
The class Graph is the implementation of a graph. The following methods should be completed:
void f1()-Perform depth-first traversal (to the file f1.txt) from the vertex i=0 (the vertex A) but display 4 vertices from the 2nd vertex to the 5th vertex only. Hint: copy depth(...) to depth2(...)and modify the latter one. Content of the output file f1.txt must be:
ABEHICDGF
BEHI
void f2() - Apply the Dijkstra's shortest path algorithm to find (1) the shortest path from vertext 1 (B) to vertex 5 (F), then (2) from vertex 0 (A) to vertex 6 (G). Write 3 lines to the file f2.txt: line 1 contains vertices in shortest path (1), line 2 contains vertices in shortest path (2), line 3 contains the last 3 vertices selected into the set S with their labels in (2). (Note that in the weighted matrix,the value 99 is considered as infinity). Output in the file f2.txt must be the following:
BCEDF
ABCEDG
D-19 F-24 G-29
