Multiple choices 28/60
(Choose 1 answer)

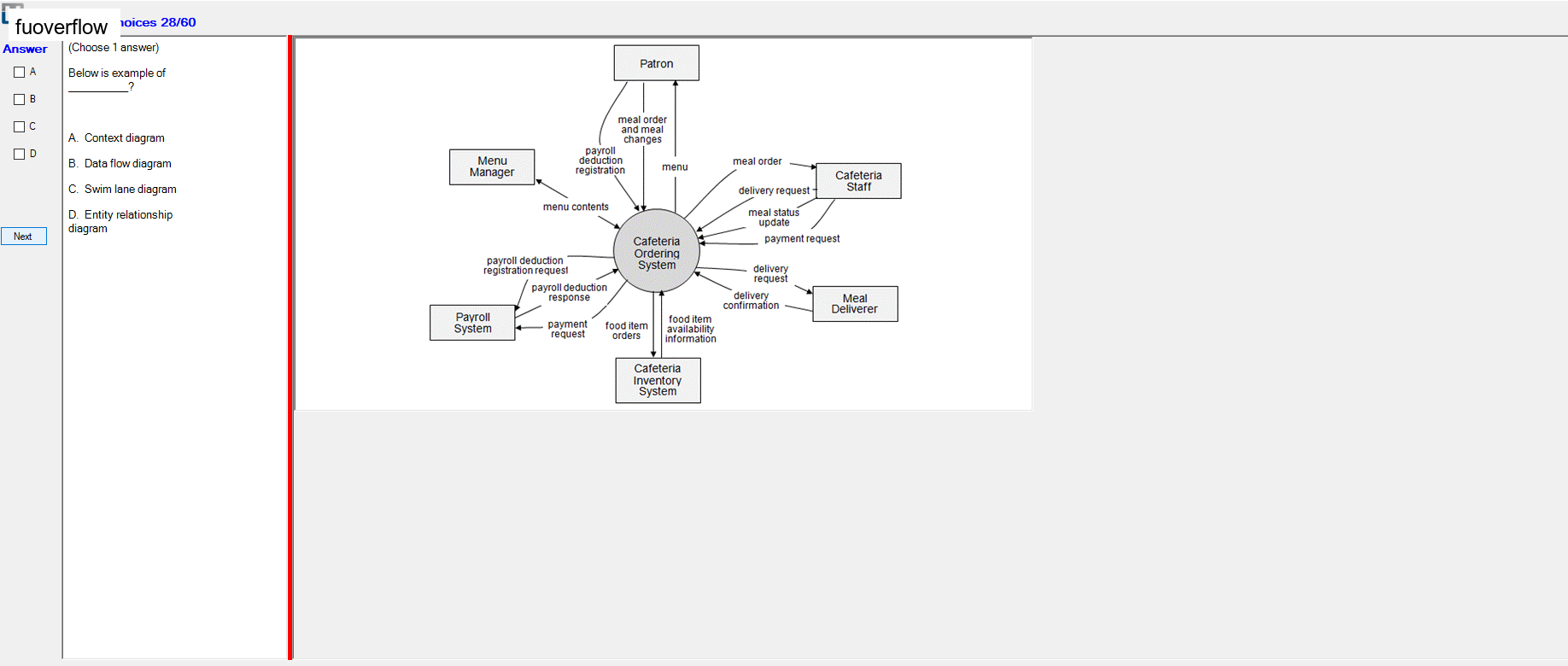

Below is example of ?
A. Context diagram
B. Data flow diagram
C. Swim lane diagram
D. Entity relationship diagram
Patron
meal order and meal changes
payroll deduction registration
Menu Manager
meal order
menu contents
menu
delivery request
Cafeteria Staff
meal status update
payment request
payroll deduction registration request
payroll deduction response
Cafeteria Ordering System
delivery request
Meal Deliverer
delivery confirmation
Next
food item availability information
food item orders
payment request
Payroll System
Cafeteria Inventory System
