Multiple Choices
(Choose 2 answers)

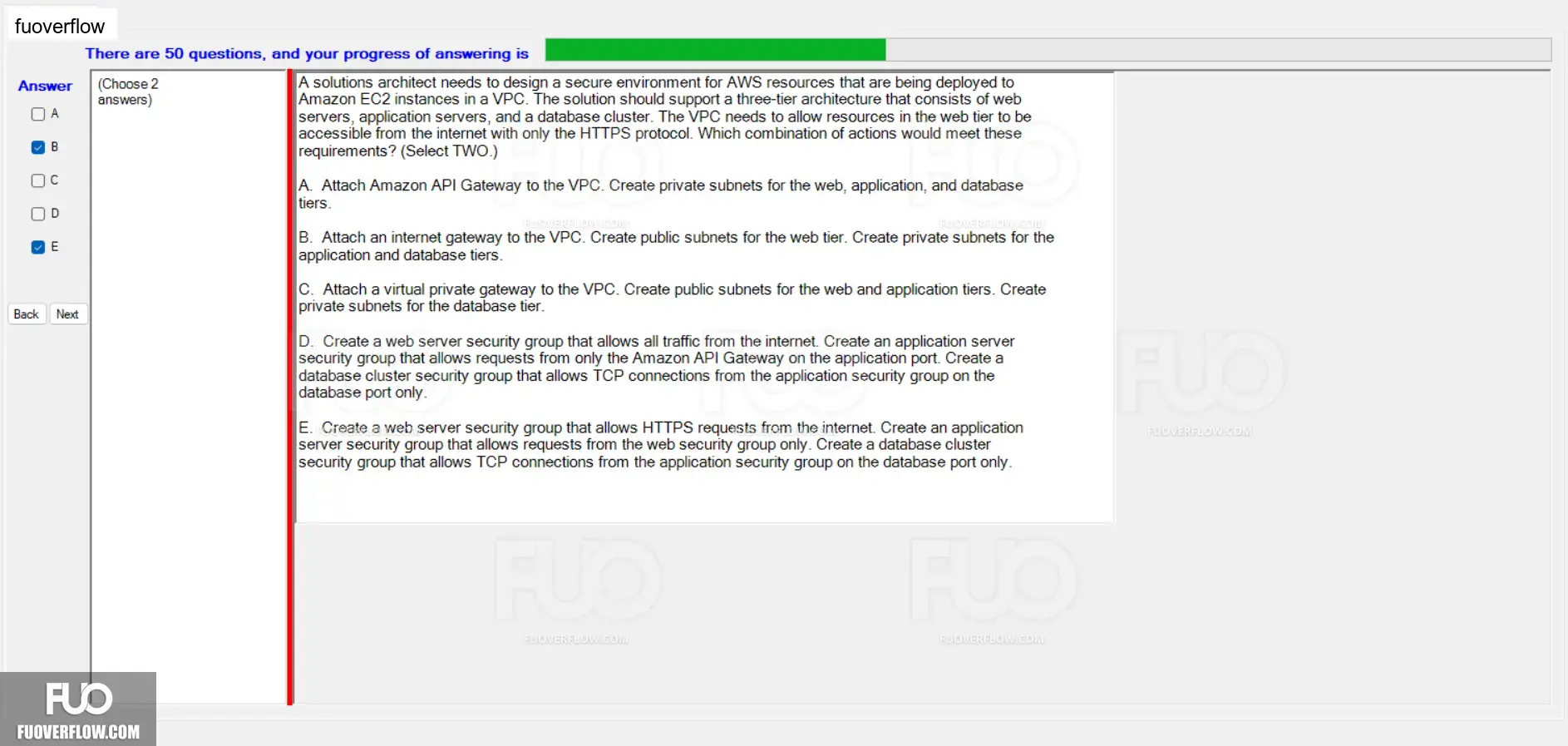

A solutions architect needs to design a secure environment for AWS resources that are being deployed to Amazon EC2 instances in a VPC. The solution should support a three-tier architecture that consists of web servers, application servers, and a database cluster. The VPC needs to allow resources in the web tier to be accessible from the internet with only the HTTPS protocol. Which combination of actions would meet these requirements? (Select TWO.)
A. Attach Amazon API Gateway to the VPC. Create private subnets for the web, application, and database tiers.
B. Attach an internet gateway to the VPC. Create public subnets for the web tier. Create private subnets for the application and database tiers.
C. Attach a virtual private gateway to the VPC. Create public subnets for the web and application tiers. Create private subnets for the database tier.
D. Create a web server security group that allows all traffic from the internet. Create an application server security group that allows requests from only the Amazon API Gateway on the application port. Create a database cluster security group that allows TCP connections from the application security group on the database port only.
E. Create a web server security group that allows HTTPS requests from the internet. Create an application server security group that allows requests from the web security group only. Create a database cluster security group that allows TCP connections from the application security group on the database port only.
