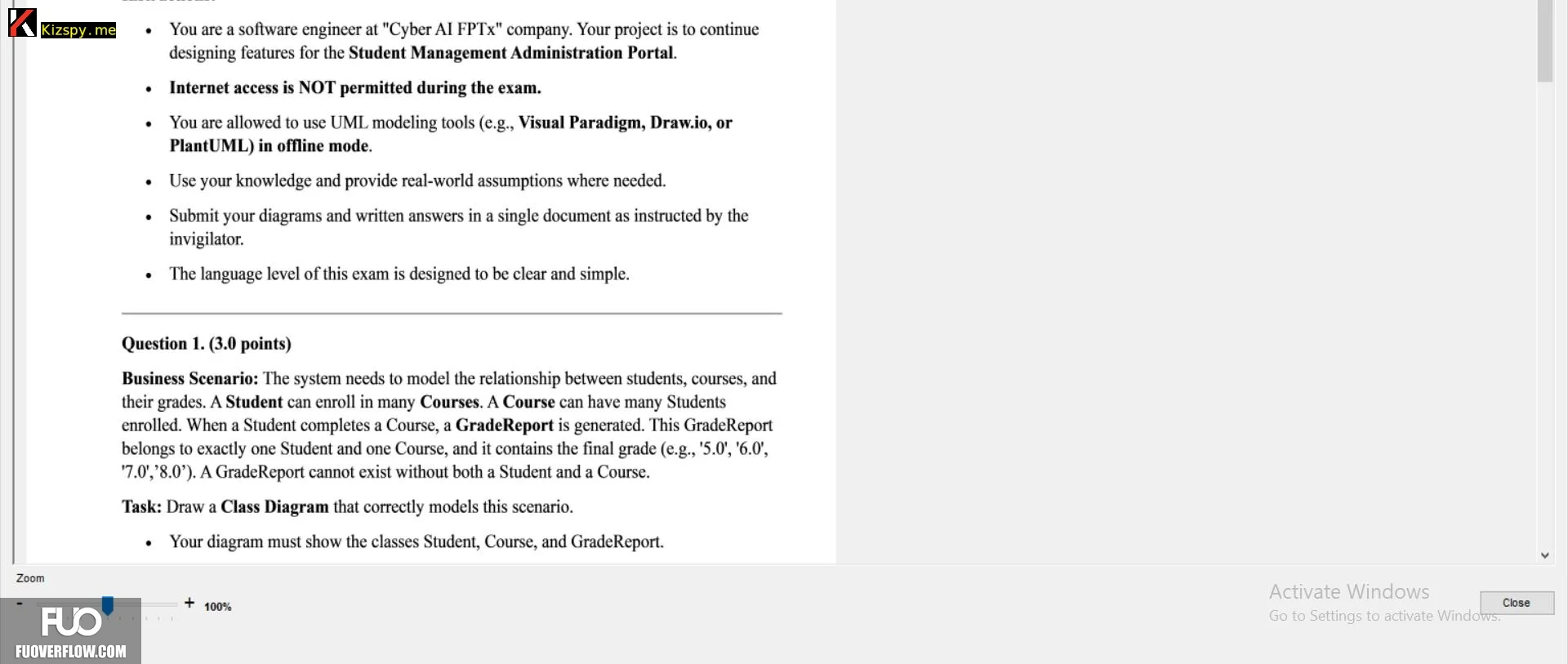

You are a software engineer at "Cyber AI FPTX" company. Your project is to continue
designing features for the Student Management Administration Portal.
Internet access is NOT permitted during the exam.
You are allowed to use UML modeling tools (e.g., Visual Paradigm, Draw.io, or
PlantUML) in offline mode.
Use your knowledge and provide real-world assumptions where needed.
Submit your diagrams and written answers in a single document as instructed by the
invigilator.
The language level of this exam is designed to be clear and simple.
Question 1. (3.0 points)
Business Scenario: The system needs to model the relationship between students, courses, and
their grades. A Student can enroll in many Courses. A Course can have many Students
enrolled. When a Student completes a Course, a Grade Report is generated. This GradeReport
belongs to exactly one Student and one Course, and it contains the final grade (e.g., '5.0', '6.0',
'7.0','8.0'). A Grade Report cannot exist without both a Student and a Course.
Task: Draw a Class Diagram that correctly models this scenario.
•
Your diagram must show the classes Student, Course, and Grade Report.
