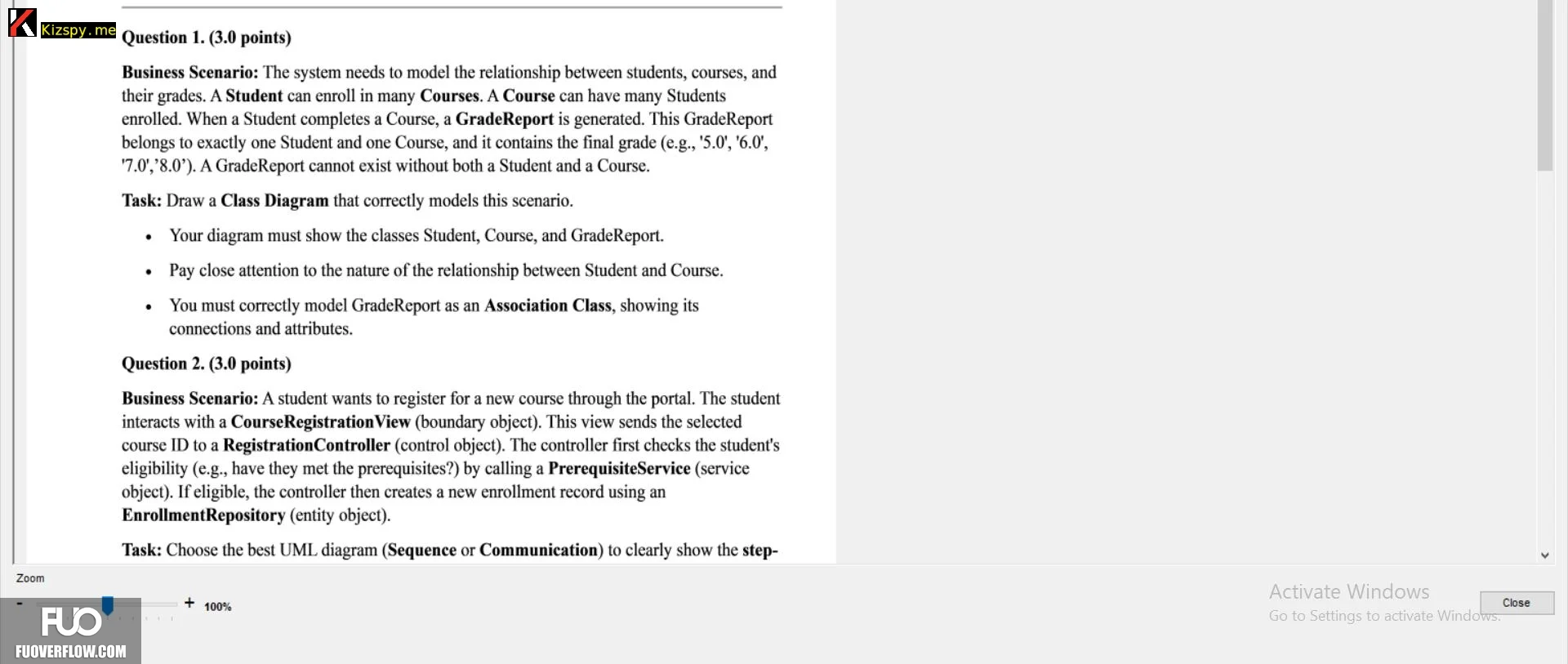

Business Scenario: The system needs to model the relationship between students, courses, and
their grades. A Student can enroll in many Courses. A Course can have many Students
enrolled. When a Student completes a Course, a Grade Report is generated. This GradeReport
belongs to exactly one Student and one Course, and it contains the final grade (e.g., '5.0', '6.0',
'7.0','8.0'). A Grade Report cannot exist without both a Student and a Course.
Task: Draw a Class Diagram that correctly models this scenario.
.
•
Your diagram must show the classes Student, Course, and Grade Report.
Pay close attention to the nature of the relationship between Student and Course.
You must correctly model GradeReport as an Association Class, showing its
connections and attributes.
Question 2. (3.0 points)
Business Scenario: A student wants to register for a new course through the portal. The student
interacts with a Course Registration View (boundary object). This view sends the selected
course ID to a Registration Controller (control object). The controller first checks the student's
eligibility (e.g., have they met the prerequisites?) by calling a Prerequisite Service (service
object). If eligible, the controller then creates a new enrollment record using an
EnrollmentRepository (entity object).
Task: Choose the best UML diagram (Sequence or Communication) to clearly show the step-
