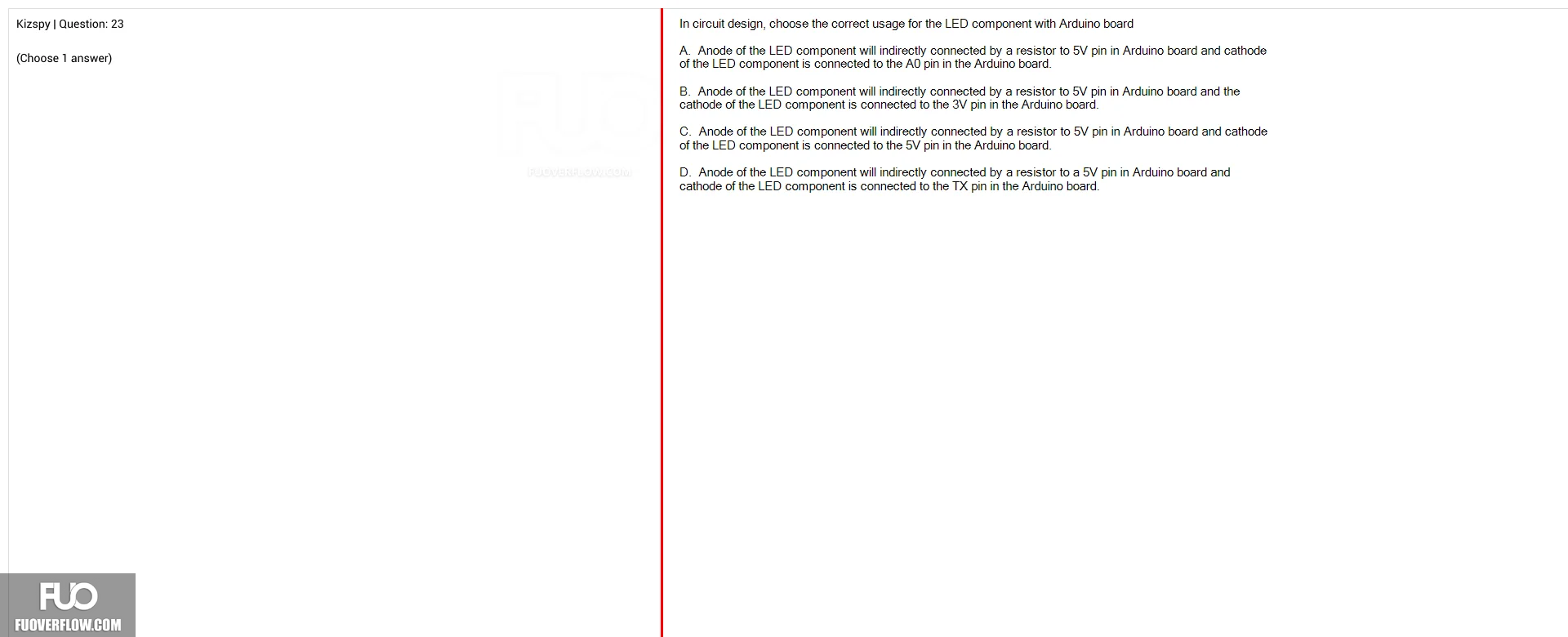

Kizspy | Question: 23
(Choose 1 answer)
In circuit design, choose the correct usage for the LED component with Arduino board
A. Anode of the LED component will indirectly connected by a resistor to 5V pin in Arduino board and cathode
of the LED component is connected to the AO pin in the Arduino board.
B. Anode of the LED component will indirectly connected by a resistor to 5V pin in Arduino board and the
cathode of the LED component sconnected to the 3V pin in the Arduino board.
C. Anode of the LED component will indirectly connected by a resistor to 5V pin in Arduino board and cathode
of the LED component is connected to the 5V pin in the Arduino board.
D. Anode of the LED component will indirectly connected by a resistor to a 5V pin in Arduino board and
cathode of the LED component is connected to the TX pin in the Arduino board.
