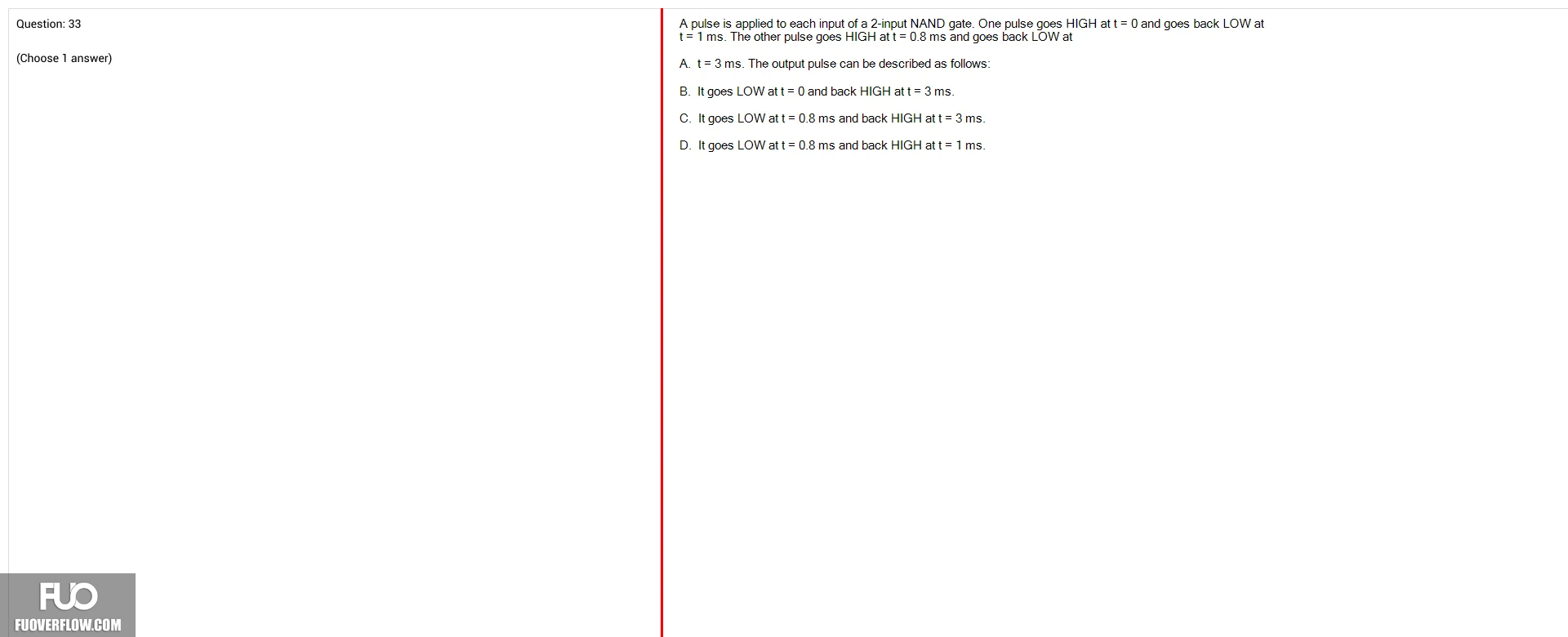

Question: 33
(Choose 1 answer)
A pulse is applied to each input of a 2-input NAND gate. One pulse goes HIGH at t=0 and goes back LOW at
t = 1 ms. The other pulse goes HIGH at t=0.8 ms and goes back LOW at
A. t = 3 ms. The output pulse can be described as follows:
B. It goes LOW at t = 0 and back HIGH at t 3 ms.
C. It goes LOW at t = 0.8 ms and back HIGH at t = 3 ms.
D. It goes LOW at t = 0.8 ms and back HIGH at t = 1 ms.
