Question: 38
F
G
(Choose 1 answer)
Check-
Log-
Login
Browse
Basket
Pay
out
out

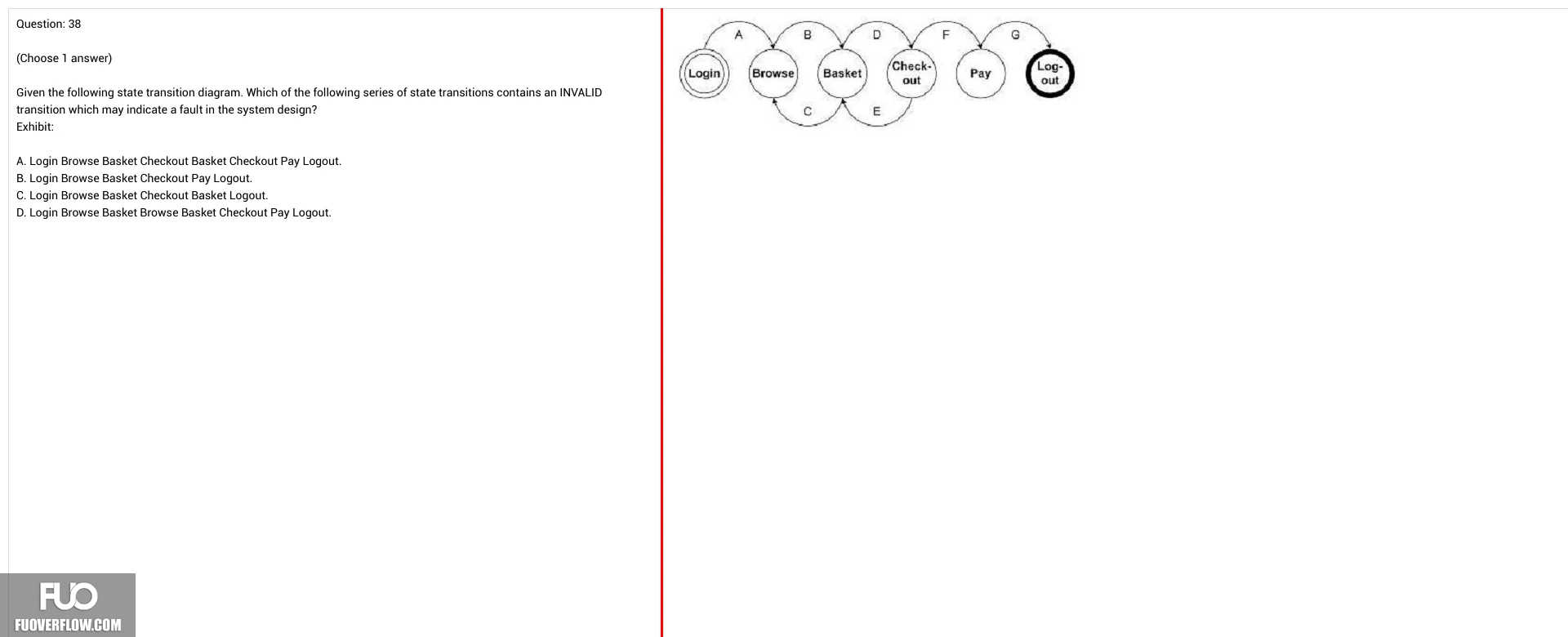

Given the following state transition diagram. Which of the following series of state transitions contains an INVALID
transition which may indicate a fault in the system design?
Exhibit:
A. Login Browse Basket Checkout Basket Checkout Pay Logout.
B. Login Browse Basket Checkout Pay Logout.
C. Login Browse Basket Checkout Basket Logout.
D. Login Browse Basket Browse Basket Checkout Pay Logout.
