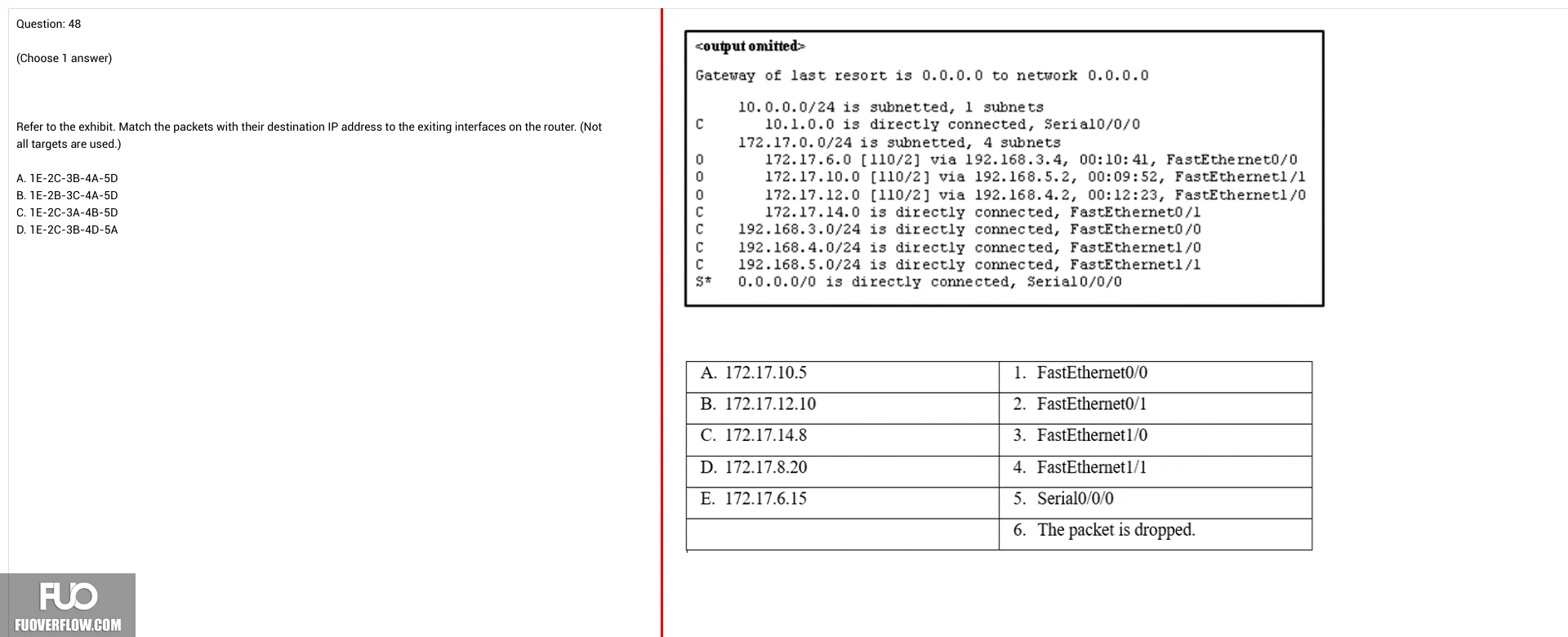

Question: 48
(Choose 1 answer)
<output omitted>>
Gateway of last resort is 0.0.0.0 to network 0.0.0.0
10.0.0.0/24 is subnetted, 1 subnets
10.1.0.0 is directly connected, Serial0/0/0
172.17.0.0/24 is subnetted, 4 subnets
Refer to the exhibit. Match the packets with their destination IP address to the exiting interfaces on the router. (Not
all targets are used.)
A. 1E-2C-3B-4A-5D
B. 1E-2B-3C-4A-5D
C. 1E-2C-3A-4B-5D
D. 1E-2C-3B-4D-5A
0
0
S*
172.17.6.0 [110/2] via 192.168.3.4, 00:10:41, FastEthernet0/0
172.17.10.0 [110/2] via 192.168.5.2, 00:09:52, FastEthernet1/1
172.17.12.0 [110/2] via 192.168.4.2, 00:12:23, FastEthernet1/0
172.17.14.0 is directly connected, FastEthernet0/1
192.168.3.0/24 is directly connected, FastEthernet0/0
192.168.4.0/24 is directly connected, FastEthernet1/0
192.168.5.0/24 is directly connected, FastEthernet1/1
0.0.0.0/0 is directly connected, Serial 0/0/0
A. 172.17.10.5
B. 172.17.12.10
C. 172.17.14.8
D. 172.17.8.20
E. 172.17.6.15
1. FastEthernet0/0
2. FastEthernet0/1
3. FastEthernet1/0
4. FastEthernet1/1
5. Serial0/0/0
6. The packet is dropped.
