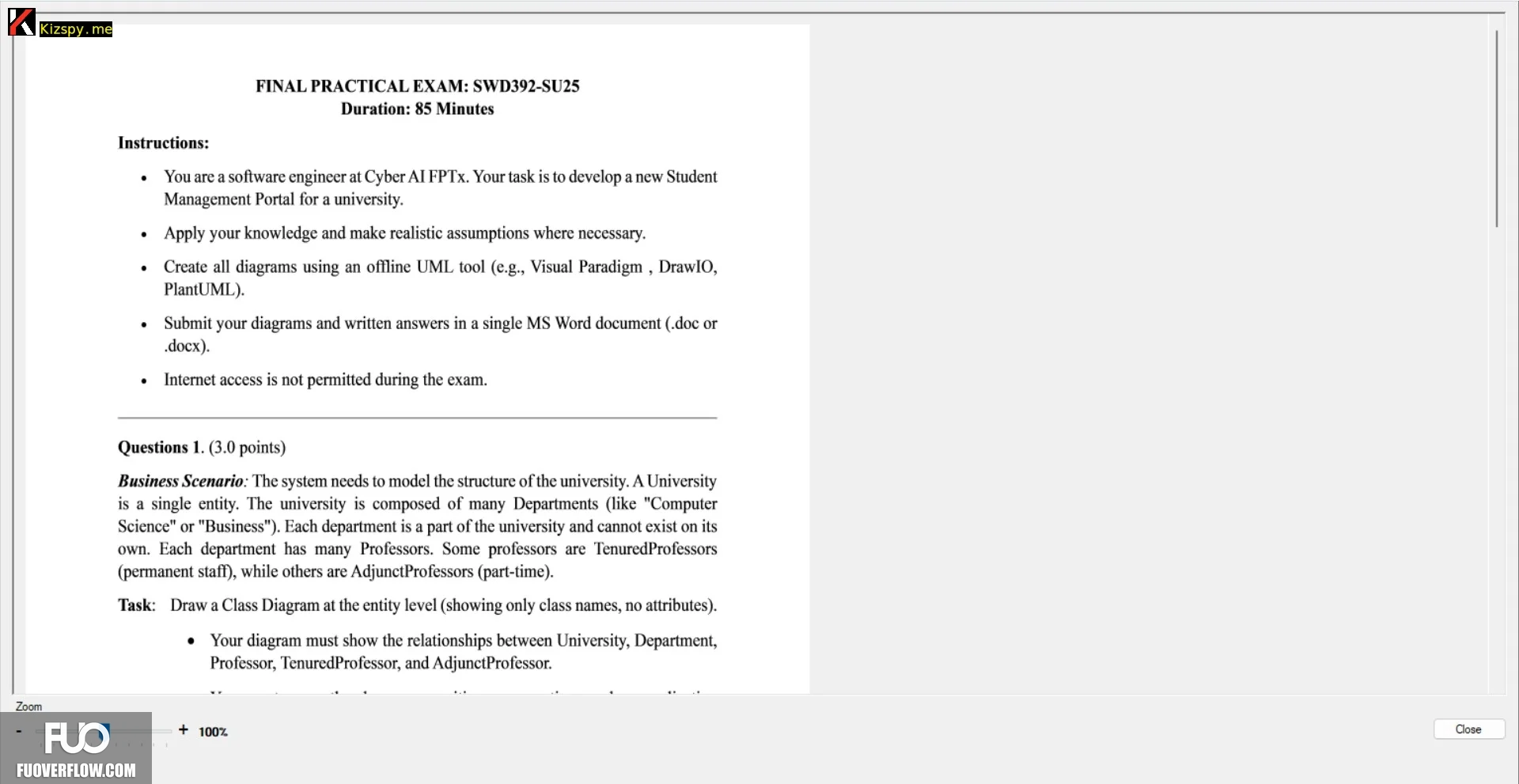

FINAL PRACTICAL EXAM: SWD392-SU25
Duration: 85 Minutes
Instructions:
•
•
•
•
•
You are a software engineer at Cyber AI FPTx. Your task is to develop a new Student
Management Portal for a university.
Apply your knowledge and make realistic assumptions where necessary.
Create all diagrams using an offline UML tool (e.g., Visual Paradigm, DrawIO,
PlantUML).
Submit your diagrams and written answers in a single MS Word document (.doc or
.docx).
Internet access is not permitted during the exam.
Questions 1. (3.0 points)
Business Scenario: The system needs to model the structure of the university. A University
is a single entity. The university is composed of many Departments (like "Computer
Science" or "Business"). Each department is a part of the university and cannot exist on its
own. Each department has many Professors. Some professors are Tenured Professors
(permanent staff), while others are Adjunct Professors (part-time).
Task: Draw a Class Diagram at the entity level (showing only class names, no attributes).
• Your diagram must show the relationships between University, Department,
Professor, Tenured Professor, and Adjunct Professor.
