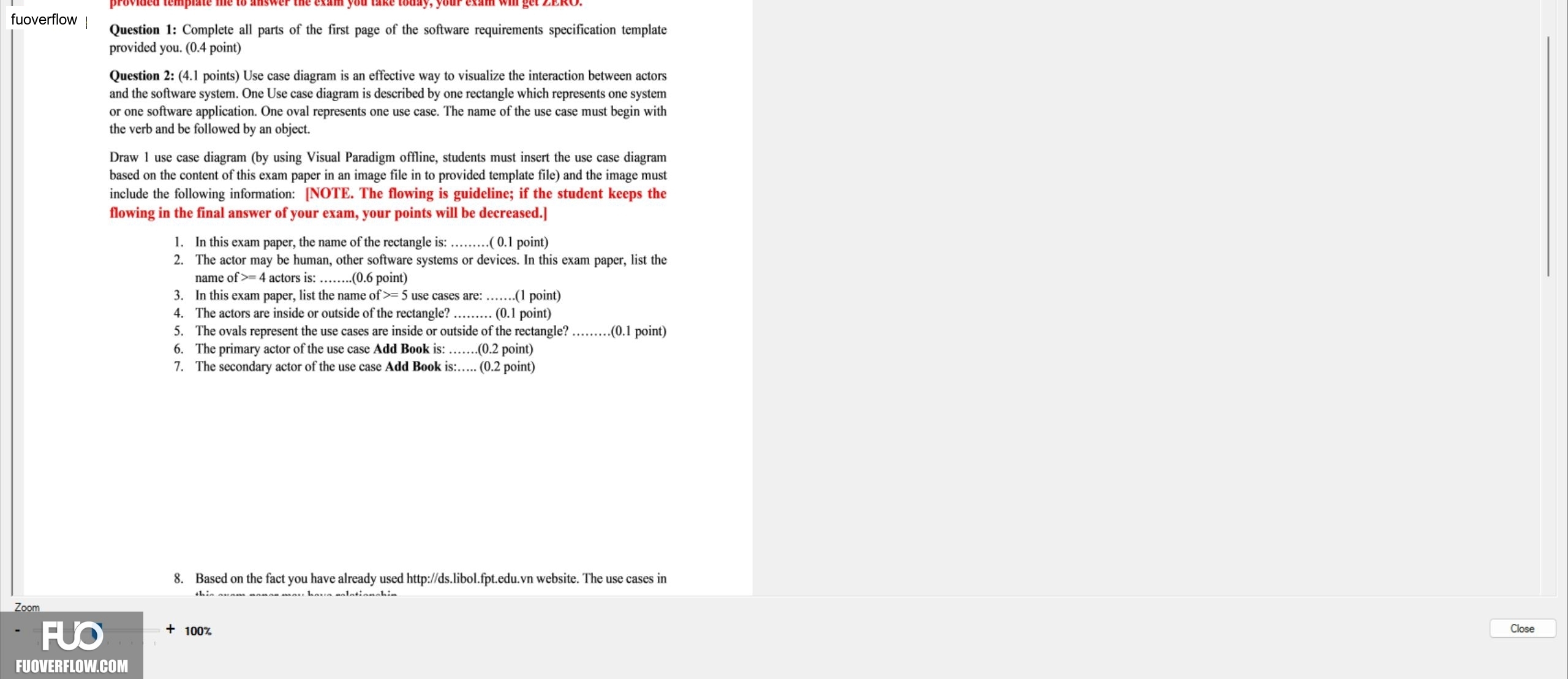

Question 1: Complete all parts of the first page of the software requirements specification template provided you. (0.4 point)
Question 2: (4.1 points) Use case diagram is an effective way to visualize the interaction between actors and the software system. One Use case diagram is described by one rectangle which represents one system or one software application. One oval represents one use case. The name of the use case must begin with the verb and be followed by an object.
Draw 1 use case diagram (by using Visual Paradigm offline, students must insert the use case diagram based on the content of this exam paper in an image file in to provided template file) and the image must include the following information: [NOTE. The flowing is guideline; if the student keeps the flowing in the final answer of your exam, your points will be decreased.]
1. In this exam paper, the name of the rectangle is:...(0.1 point)
2. The actor may be human, other software systems or devices. In this exam paper, list the name of >= 4 actors is: ....(0.6 point)
3. In this exam paper, list the name of >= 5 use cases are: .......(1 point)
4. The actors are inside or outside of the rectangle?(0.1 point)
5. The ovals represent the use cases are inside or outside of the rectangle? .........(0.1 point)
6. The primary actor of the use case Add Book is: ..(0.2 point)
7. The secondary actor of the use case Add Book is:..... (0.2 point)
8. Based on the fact you have already used
http://ds.libol.fpt.edu.vn website. The use cases in
