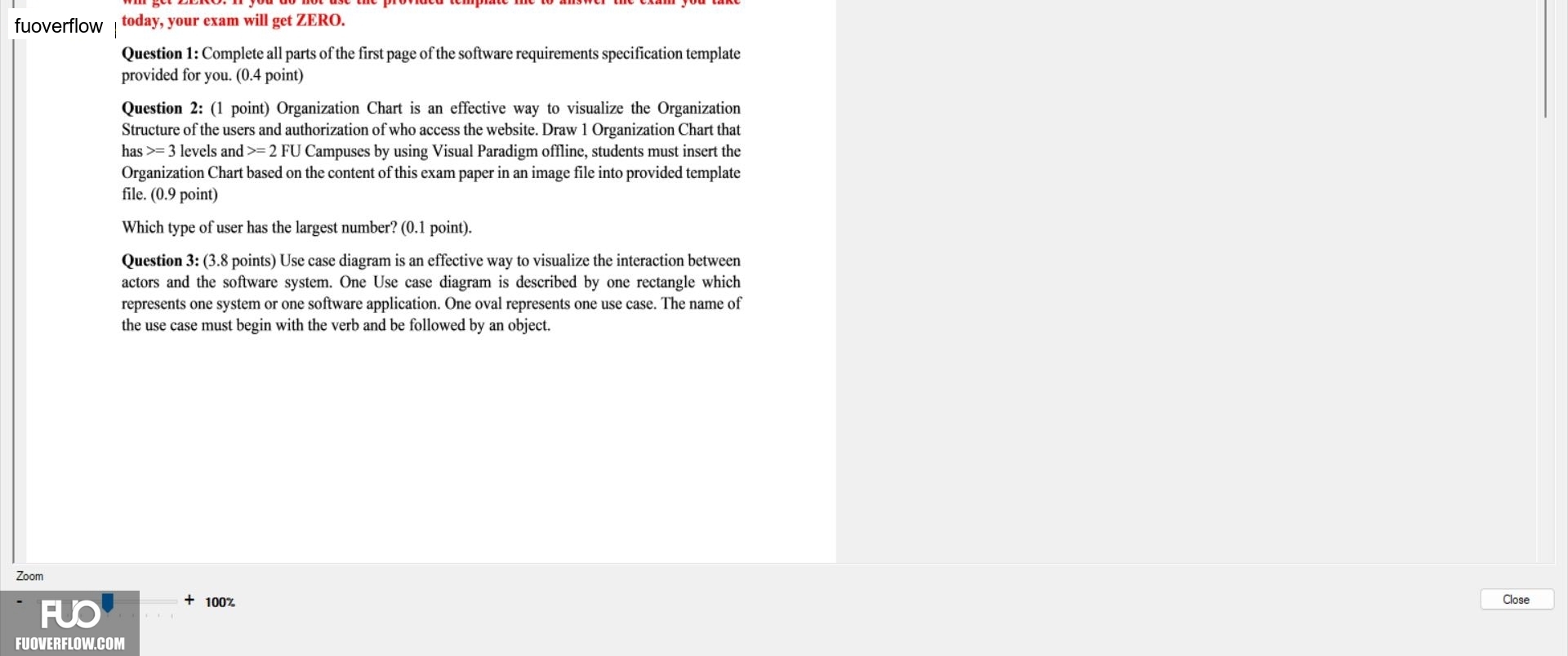

today, your exam will get ZERO.
Question 1: Complete all parts of the first page of the software requirements specification template provided for you. (0.4 point)
Question 2: (1 point) Organization Chart is an effective way to visualize the Organization Structure of the users and authorization of who access the website. Draw 1 Organization Chart that has >= 3 levels and >= 2 FU Campuses by using Visual Paradigm offline, students must insert the Organization Chart based on the content of this exam paper in an image file into provided template file. (0.9 point)
Which type of user has the largest number? (0.1 point).
Question 3: (3.8 points) Use case diagram is an effective way to visualize the interaction between actors and the software system. One Use case diagram is described by one rectangle which represents one system or one software application. One oval represents one use case. The name of the use case must begin with the verb and be followed by an object.
