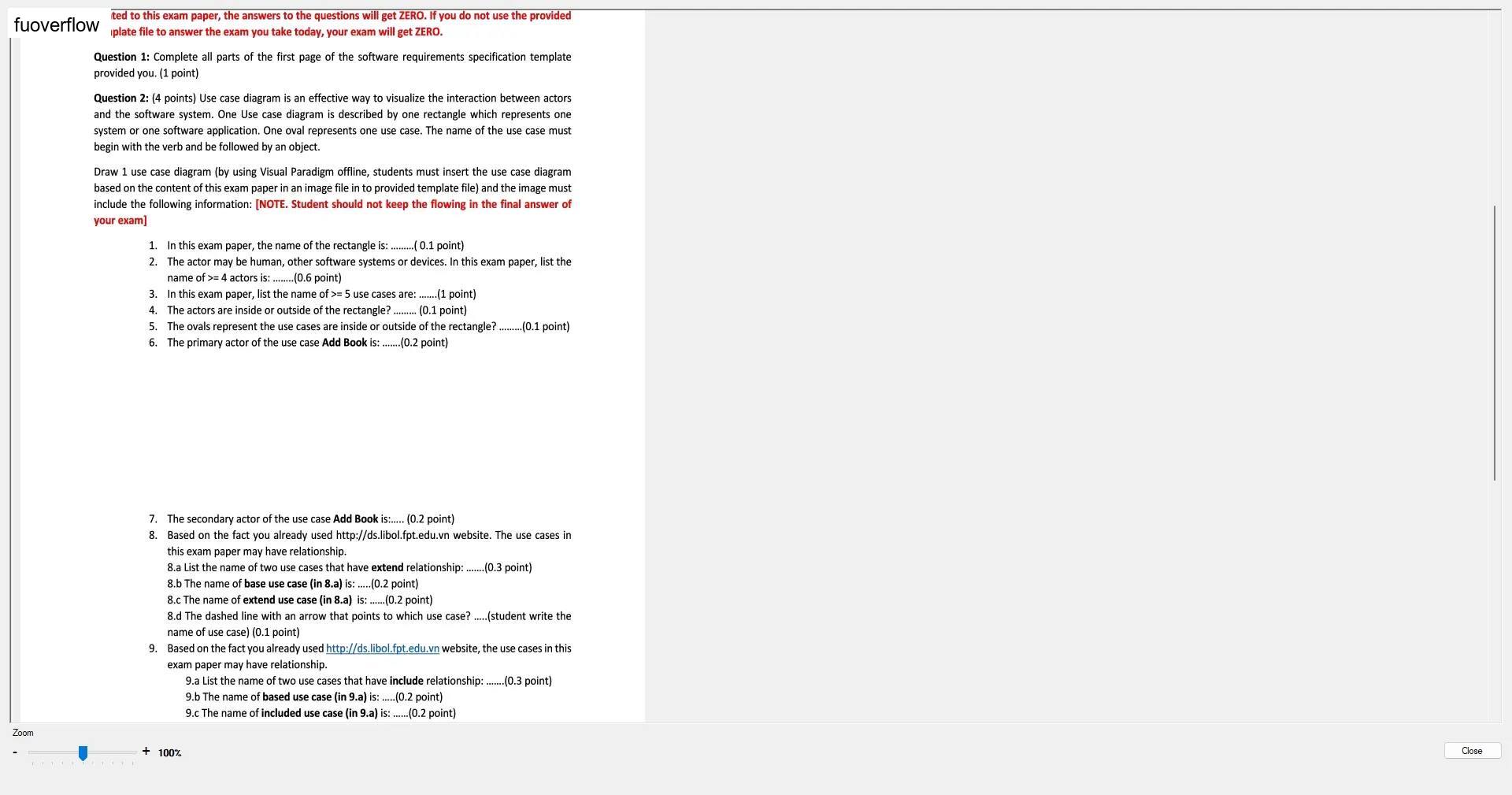

related to this exam paper, the answers to the questions will get ZERO. If you do not use the provided template file to answer the exam you take today, your exam will get ZERO.
Question 1: Complete all parts of the first page of the software requirements specification template provided you. (1 point)
Question 2: (4 points) Use case diagram is an effective way to visualize the interaction between actors and the software system. One Use case diagram is described by one rectangle which represents one system or one software application. One oval represents one use case. The name of the use case must begin with the verb and be followed by an object.
Draw 1 use case diagram (by using Visual Paradigm offline, students must insert the use case diagram based on the content of this exam paper in an image file in to provided template file) and the image must include the following information: [NOTE. Student should not keep the flowing in the final answer of your exam]
1.In this exam paper, the name of the rectangle is:.........(0.1 point)
2.The actor may be human, other software systems or devices. In this exam paper, list the name of >= 4 actors is: ........ (0.6 point)
3.In this exam paper, list the name of >= 5 use cases are:.......(1 point)
4. The actors are inside or outside of the rectangle?....(0.1 point)
5. The ovals represent the use cases are inside or outside of the rectangle?..........(0.1 point)
6. The primary actor of the use case Add Book is: .......(0.2 point)
7. The secondary actor of the use case Add Book is:..... (0.2 point)
8. Based on the fact you already used
http://ds.libol.fpt.edu.vn website. The use cases in
this exam paper may have relationship.
8.a List the name of two use cases that have extend relationship:....... (0.3 point)
8.b The name of base use case (in 8.a) is: .....(0.2 point)
8.c The name of extend use case (in 8.a) is:......(0.2 point)
8.d The dashed line with an arrow that points to which use case?.....(student write the
name of use case) (0.1 point)
9. Based on the fact you already used
http://ds.libol.fpt.edu.vn website, the use cases in this
exam paper may have relationship.
9.a List the name of two use cases that have include relationship:
9.b The name of based use case (in 9.a) is:.....(0.2 point)
9.c The name of included use case (in 9.a) is:......(0.2 point)
..(0.3 point)
