Which type of user of the website in this exam has the largest number? (0.1 point).
Kizspy.me

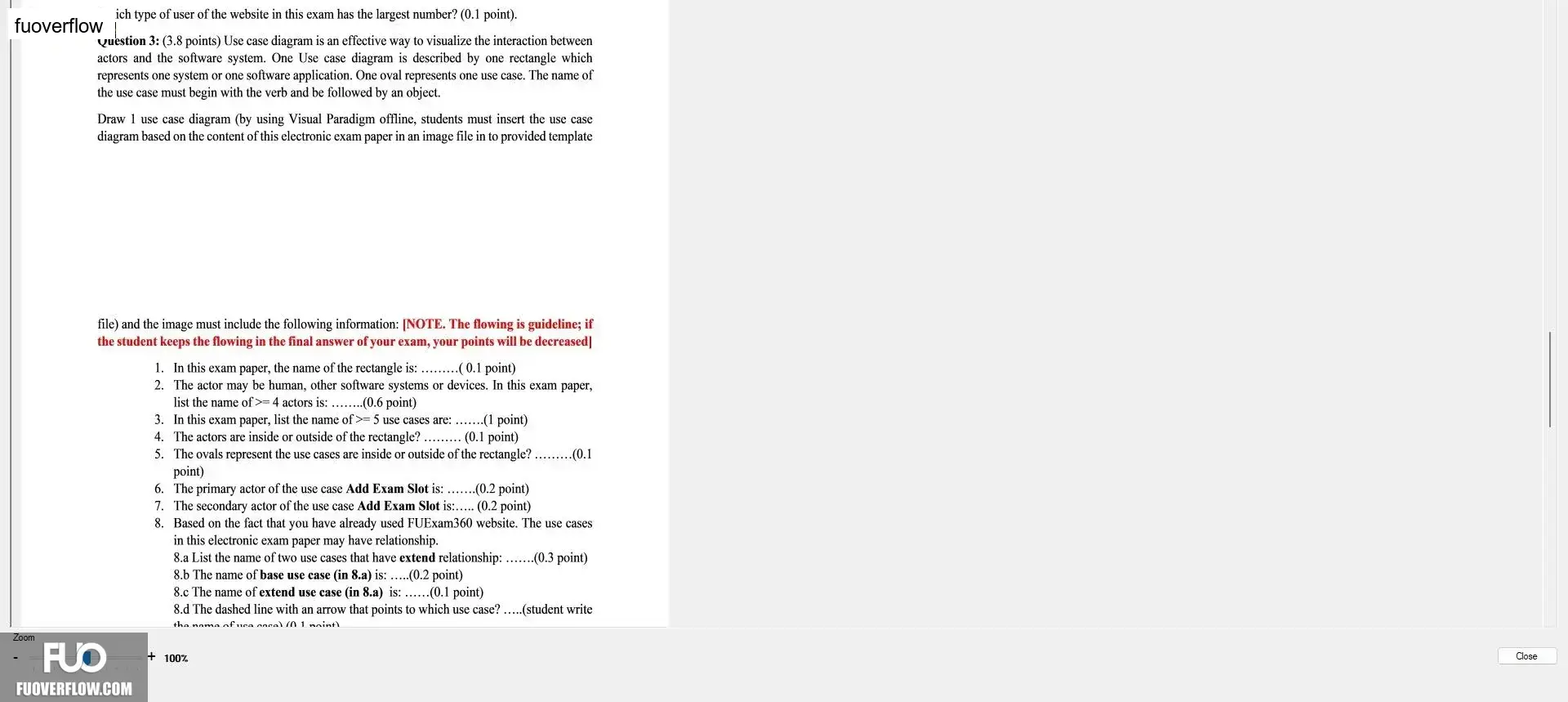

Question 3: (3.8 points) Use case diagram is an effective way to visualize the interaction between
actors and the software system. One Use case diagram is described by one rectangle which
represents one system or one software application. One oval represents one use case. The name of
the use case must begin with the verb and be followed by an object.
Draw 1 use case diagram (by using Visual Paradigm offline, students must insert the use case
diagram based on the content of this electronic exam paper in an image file in to provided template
file) and the image must include the following information: [NOTE. The flowing is guideline; if
the student keeps the flowing in the final answer of your exam, your points will be decreased]
1. In this exam paper, the name of the rectangle is: ......... (0.1 point)
2. The actor may be human, other software systems or devices. In this exam paper,
list the name of >=4 actors is: ........(0.6 point)
3. In this exam paper, list the name of >= 5 use cases are: .......(1 point)
4. The actors are inside or outside of the rectangle? .... (0.1 point)
5. The ovals represent the use cases are inside or outside of the rectangle? ...... (0.1
point)
6. The primary actor of the use case Add Exam Slot is: .......(0.2 point)
7. The secondary actor of the use case Add Exam Slot is:..... (0.2 point)
8. Based on the fact that you have already used FUExam360 website. The use cases
in this electronic exam paper may have relationship.
8.a List the name of two use cases that have extend relationship: .......(0.3 point)
8.b The name of base use case (in 8.a) is: .....(0.2 point)
8.c The name of extend use case (in 8.a) is: ......(0.1 point)
8.d The dashed line with an arrow that points to which use case? .....(student write
the name of usa coca) (01 noint)
