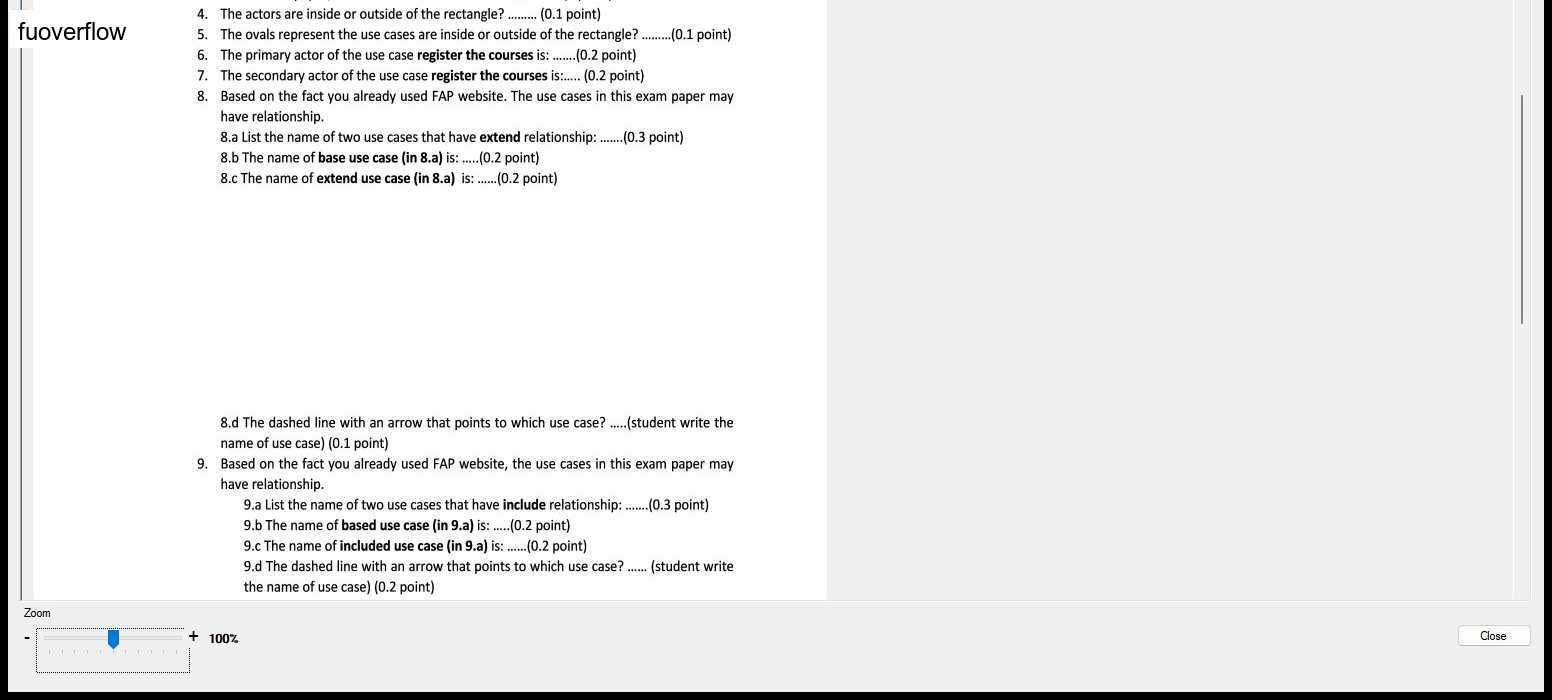

4. The actors are inside or outside of the rectangle?.... (0.1 point)
5. The ovals represent the use cases are inside or outside of the rectangle?.........(0.1 point)
6. The primary actor of the use case register the courses is: .......(0.2 point)
7. The secondary actor of the use case register the courses is...... (0.2 point)
8. Based on the fact you already used FAP website. The use cases in this exam paper may
have relationship.
8.a List the name of two use cases that have extend relationship:....... (0.3 point)
8.b The name of base use case (in 8.a) is:.....(0.2 point)
8.c The name of extend use case (in 8.a) is:......(0.2 point)
8.d The dashed line with an arrow that points to which use case?.....(student write the name of use case) (0.1 point)
9. Based on the fact you already used FAP website, the use cases in this exam paper may
have relationship.
9.a List the name of two use cases that have include relationship: ....... (0.3 point)
9.b The name of based use case (in 9.a) is:.....(0.2 point)
9.c The name of included use case (in 9.a) is:......(0.2 point)
9.d The dashed line with an arrow that points to which use case?the name of use case) (0.2 point)(student write
