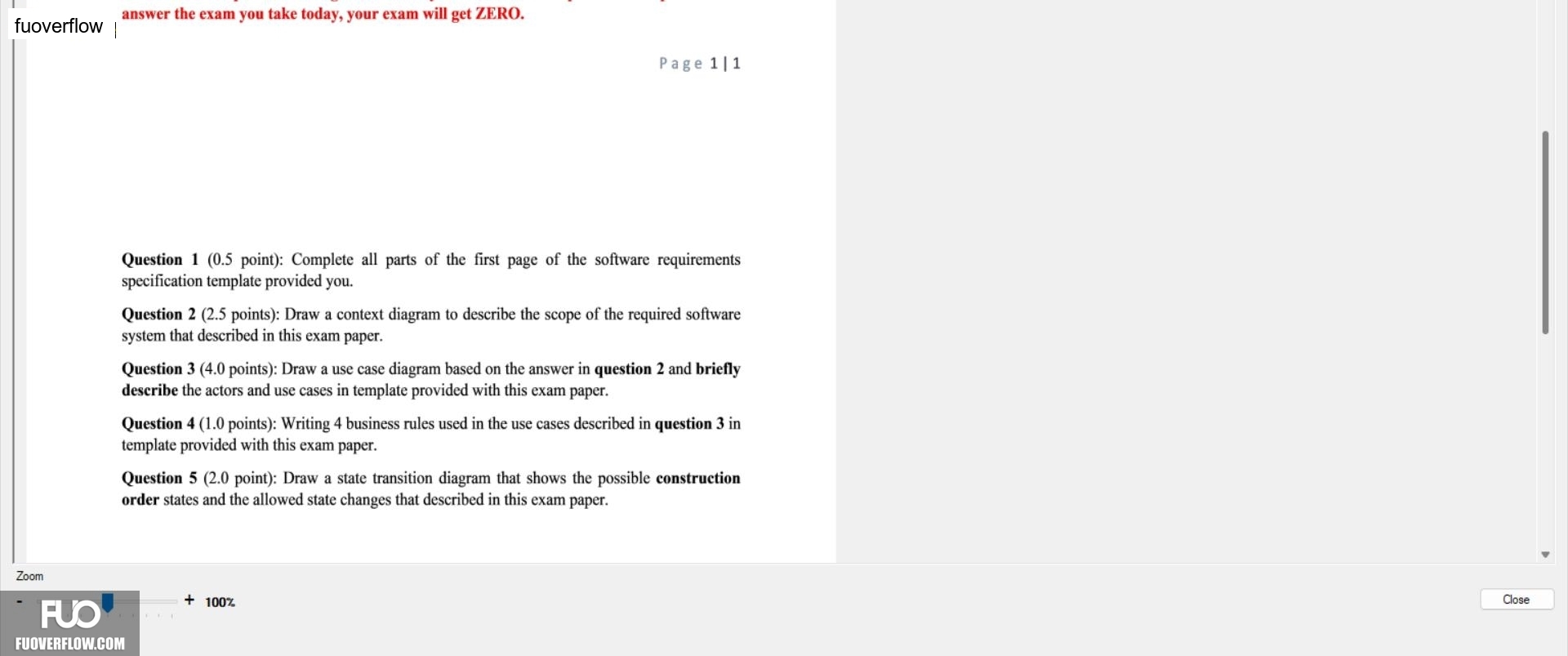

Question 1 (0.5 point): Complete all parts of the first page of the software requirements specification template provided you.
Question 2 (2.5 points): Draw a context diagram to describe the scope of the required software system that described in this exam paper.
Question 3 (4.0 points): Draw a use case diagram based on the answer in question 2 and briefly describe the actors and use cases in template provided with this exam paper.
Question 4 (1.0 points): Writing 4 business rules used in the use cases described in question 3 in template provided with this exam paper.
Question 5 (2.0 point): Draw a state transition diagram that shows the possible construction order states and the allowed state changes that described in this exam paper.
