Question: 9
(Choose 1 answer)

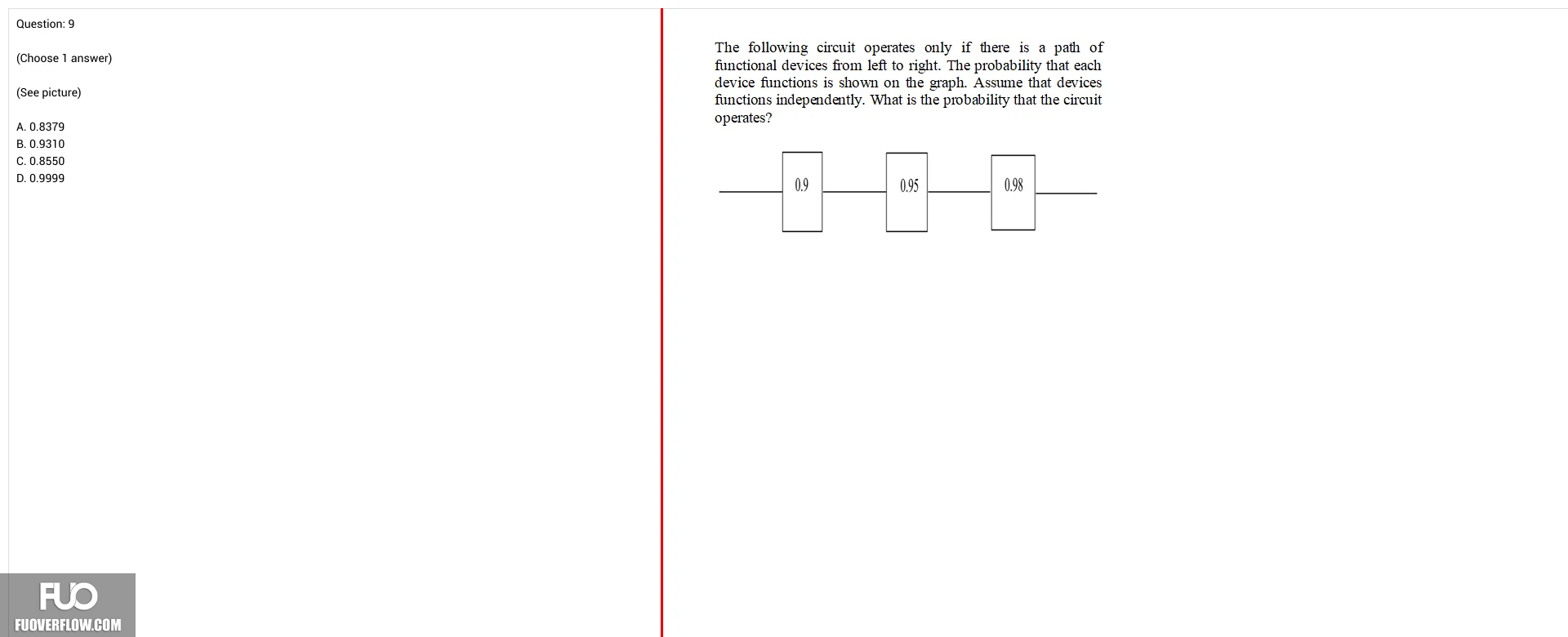

(See picture)
A. 0.8379
B. 0.9310
C. 0.8550
D. 0.9999
The following circuit operates only if there is a path of
functional devices from left to right. The probability that each
device functions is shown on the graph. Assume that devices
functions independently. What is the probability that the circuit
operates?
0.9
"""
0.95
0.98
