F
G
Login
(Choose 1 answer)

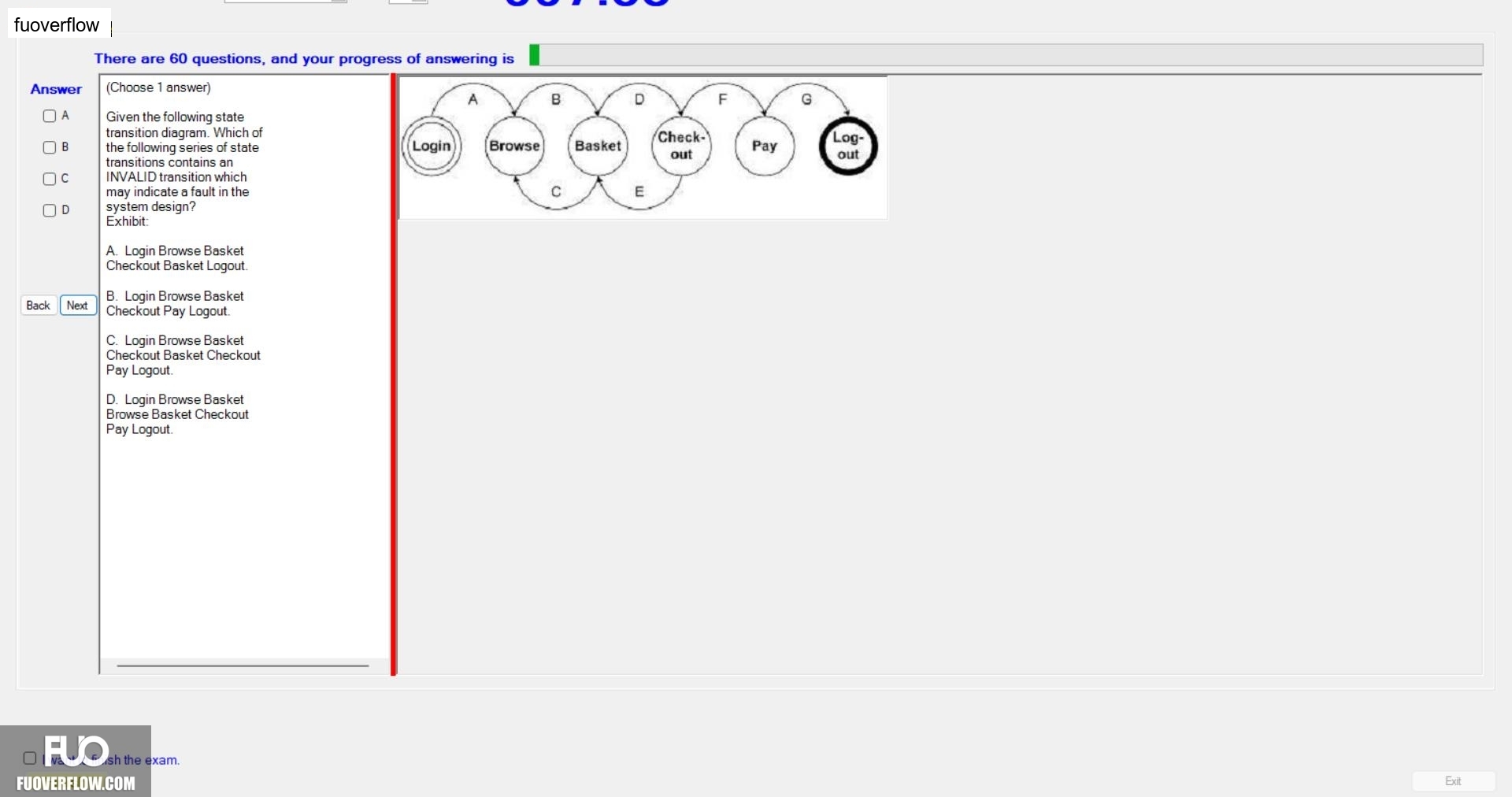

Given the following state transition diagram. Which of the following series of state transitions contains an INVALID transition which may indicate a fault in the system design?
Exhibit:
A. Login Browse Basket Checkout Basket Logout.
B. Login Browse Basket Checkout Pay Logout.
C. Login Browse Basket Checkout Basket Checkout Pay Logout.
D. Login Browse Basket Browse Basket Checkout Pay Logout.
Browse
Basket
Check-out
Pay
Log-out
